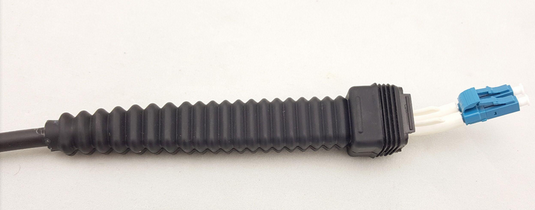

NSN PDLC Fiber Optic Patch Cord For 4G LTE Base Station 2 Cores
SM MM OM3 OM4 CPRI DLC Patch Cable
KOCENT OPTEC LIMITED supply OEM and ODM service for all type of fiber optic patch cord.
Special in outdoor field operations fiber optic patch cord and OM3, OM4 patch cord.
We supply all kinds of field operations fiber optic patch cord with different types of water-proof connector, use for Telecom 3G, 4G, LTE, BBU, RRU, RRH base station.
With completed of production equipment and closed of QC process, we supply Telecom standard of goods to our customer.
If your company want to show your LOGO on the cable or label, we can do it too.
Our outdoor fiber optic connector family:
Description:
- NSN fiber optic connectors for the new generation wireless base stations pulled far (WCDMA/ TD-SCDMA/ WIMAX/ GSM) tailored products that can be meet the FTTA (fiber to the antenna) program requirements for outdoor environment conditions and adverse weather conditions.
- They are well suited for Industrial and Aerospace and Defense applications.
Features:
- Standard DLC connector,
- Available Single mode and Multimode
- IP65 protection, salt-mist proof, humidity proof,
- Aluminum housing, compact design
- Broad temperature range and wide range of indoor and outdoor Patch cables
- Easy Operation, reliable and cost-effective Installation
- The connector of side A is DLC, and side-B can be LC,FC,SC
- Used for 3G 4G base station BBU, RRU, RRH, LTE
Applications:
- Widely used in FTTA & FTTH
- Used for 3G 4G base station
- BBU, RRU, RRH, LTE
Specification:
| Item | SM | MM |
| Connector | A: NSN, B: NSN, LC, SC, FC, ST |
| Fiber Type | G657A1/A2 |
| Fiber Count | 2 Cores |
| Color | Bule, Green | Beige,Aqua |
| Polish | UPC, APC | PC |
| Insertion Loss | ≤0.2dB |
| Return Loss | ≥50dB(UPC) ≥60dB(APC) | ≥35dB |
| Durability | ≥500 cycles ≤0.2dB |
| Test Wavelength | 1310/1550nm | 850/1310nm |
| Attenuation (max.dB) | 1310nm≤0.35dB/km
1550nm≤0.25dB/km | 850nm≤3.0dB/km
1310nm≤1.0dB/Km |
| Operating Temperature | -40 to +80℃ |
OEM/ODM Service:
If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
