SM MM Fiber Optical Fast Connector , Fiber Optic Cable Assembly Connector

kocent optec limited
Contact Now

SM MM Fiber Optical Fast Connector , Fiber Optic Cable Assembly Connector

  • 1
  • 2
  • 3

Brand Name : KCO

Model Number : FAST-55/60-SC-UPC

Certification : ISO9001, RoHS

Place of Origin : Guangdong, China

MOQ : Negotiation

Price : Negotiation

Payment Terms : Western Union, T/T, L/C

Supply Ability : 100,000pcs/month

Delivery Time : 2~5 days after get payment

Packaging Details : PE bag, carton box, wooden pallet

Type : FAST SC

Color : Blue, White

Insertion loss : 0.2dB

Return loss : 55dB

Mode : single mode, multi mode

Length : 55mm, 60mm

Contact Now



SC/UPC Fiber Optical Fast Connector, SM/MM, Field Assembly Connector 55mm/60mm



Overview:

Field Assembly SC quick connector can provide a quick and easy of fiber in the field. Options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesive or costly curing ovens and polishing and fiber deface inspection.



Features:

1. Factory-installed fiber stub

2. No epoxy or polishing required

3. Quick and easy fiber termination in the field 4.Eliminates cable excess length and pigtail splice storage

4. Eliminates cable excess length and pigtail splice storage

5. Cost effective



Application:

1. CATV

2. Telecommunication networks

3. Test equipment

4. Local Area Networks(LANs)

5. Data processing networks

6. Other industry and military applications



Specification:

Fast Connector Specification
Mode SM   MM
Polish UPC APC PC
Insertion Loss

Typical ≤0.2dB

Maximum ≤0.3dB

≤0.25dB

Return Loss ≥50dB ≥65dB ≥35dB
Interchangeability ≤0.2dB
Repeatability ≤0.1dB
Durability ≤0.2dB (1000 times mating)
Tensile Strengh > 10kg
Temperature ≤0.2dB (-40+85 sustain 100 hours)
Humidity ≤0.2dB (+25+65 93 R.H.100 hours)

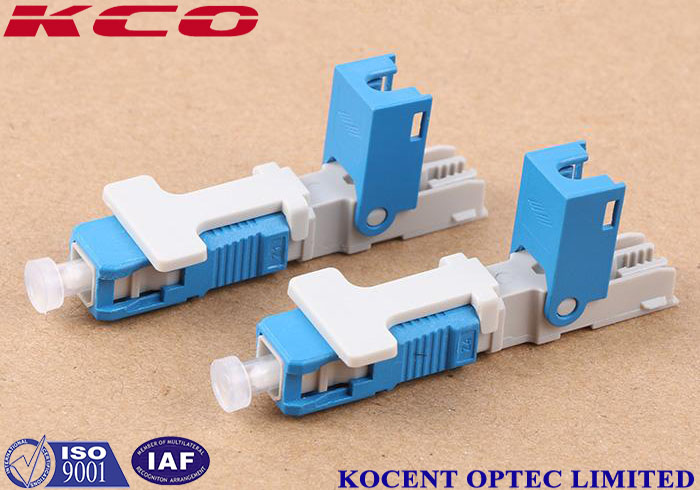

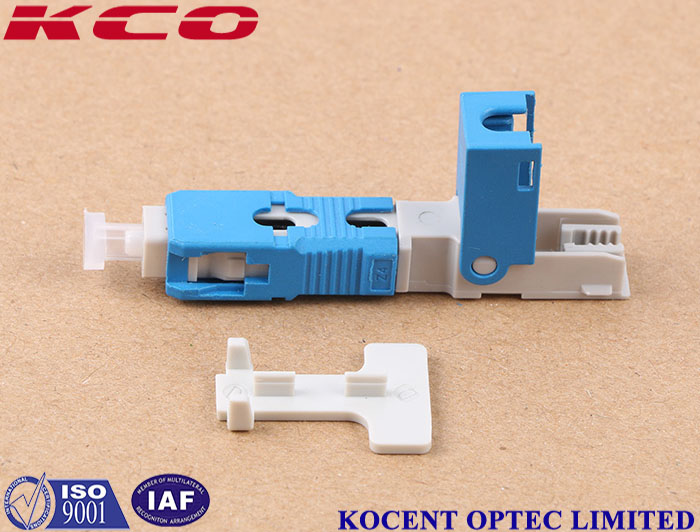

Product Pictures:



SM MM Fiber Optical Fast Connector , Fiber Optic Cable Assembly Connector





SM MM Fiber Optical Fast Connector , Fiber Optic Cable Assembly Connector



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
